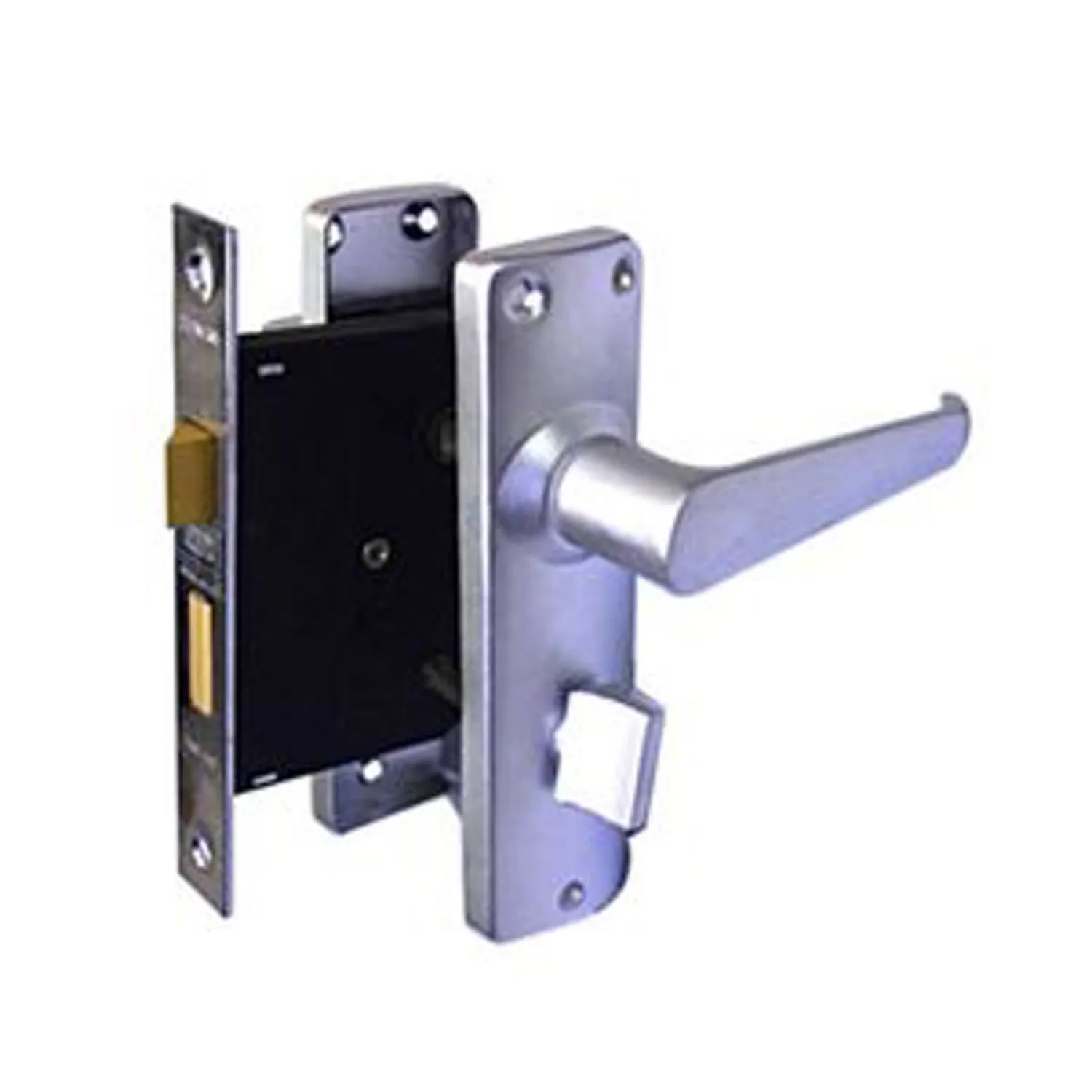

Union 2 Lever Bathroom Lock with Aluminium Martin Handle 2L-680-06-95-AS

Features and Specifications

• Deadbolt locked or unlocked by separate turn from inside
• Deadbolt unlocked by separate emergency release from outside
• Latch bolt withdrawn by lever handle from either side
• Reversible latch bolt: Two way action suitable for lightweight knobs or sprung handles
• Not suitable for unsprung lever handles
• NB: Not suitable for bolt through fixing
• Available with square forend and striking plate
• Case Size: 63mm (2.5”) or 76mm (3”)
• Backset: 44.5mm or 57mm
• Case: Steel, black powder coat
• Forend: Chrome or brass finish
• Striking Plate: Finished to match forend
• Deadbolt: Zinc alloy
• Latch Bolt: Zinc alloy
• Follower: 8mm square, 5mm turn follower

Application:

• Flush/lightweight doors
• Internal applications
