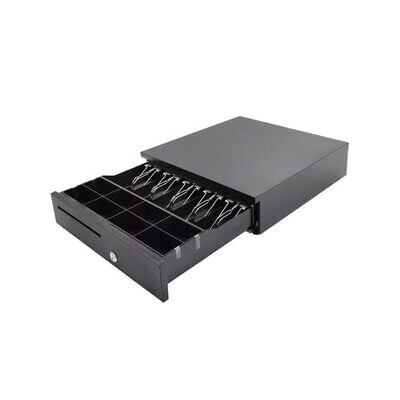

Interface Eletronic cash drawer blak. size 420X405X100mm RJ11 5B8C ECD-420X

Features:

Made of SECC and SPCC materials

Textured hybrid powder coat finish

Compatible with 12V - 24V wide voltage range

Equipped with 3-position locks

Includes one check slot

Offers 5B8C or 6B4C configuration options

Optional micro-switch sensor

Bottom outlet for a tidy desktop

Pluggable wire for easy maintenance

Specifications:

Materials: Upper cover - 0.8mm SPCC, bottom cover - 1.0mm SECC

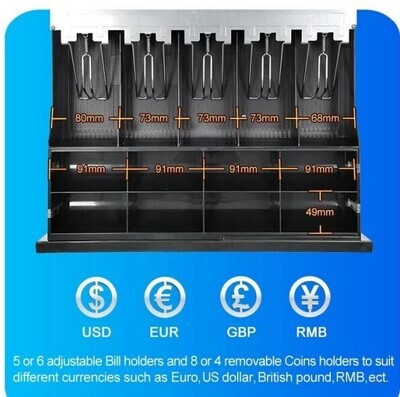

Bill Tray: 5-bill or 6-bill (5B8C standard, 6B4C optional)

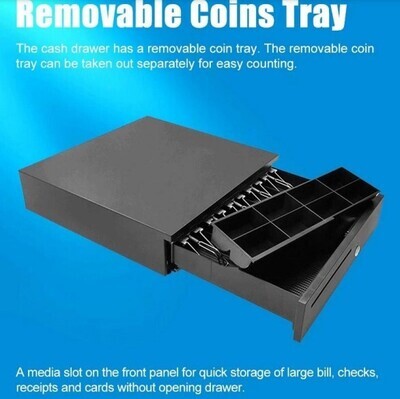

Coin Tray: 8-coin or 4-coin

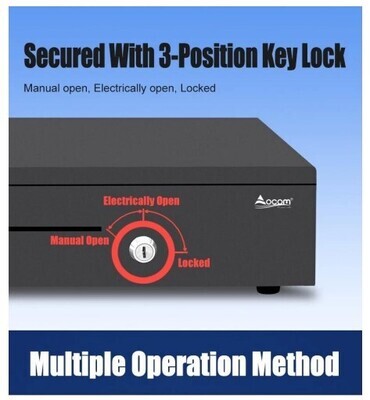

Lock: 3-position locks (Locked, can be triggered, opened)

Power: 12V - 24V wide voltage

Slot: Single check slot

Lifetime: Tested to minimum one million cycles

Interface: RJ11 or RJ12 (RJ12 for Micro-switch Sensor function)

Color: Black or White

Weight: 4.5 kg (net), 5.2 kg (gross)

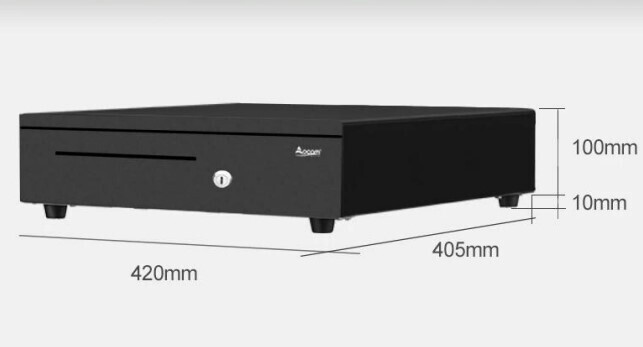

Dimensions: 405(D) x 420(W) x 100mm(H) (with feet of 10mm)

Box Dimensions: 480(W) x 465(D) x 160(H)

Package Contents:

1 x 5B8C or 6B4C Electronic Cash Drawer (Model No.: ECD-420-X)

How to Use:

Installation: Place the cash drawer in a suitable location on your counter or workstation.

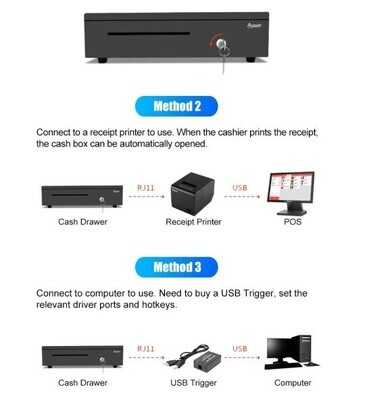

Connection: Connect the cash drawer to your POS system using the provided RJ11 or RJ12 interface.

Configuration: Choose between 5-bill or 6-bill configurations based on your needs.

Operation: Use the cash drawer to store bills, coins, and checks securely during transactions.

Maintenance: Utilize the pluggable wire for easy maintenance and keep the bottom outlet clean for a tidy workspace.
