Ebco Flat Screen Holder Single Arm - Edge Mount FSHSA

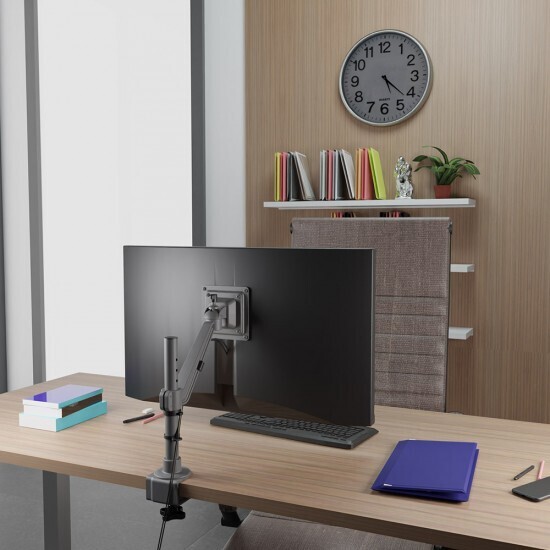

Ebco FSHSA Single Arm Edge Mount Monitor Arm - Easy Height Adjustment & Tilt

Key Features:

• Single Arm Edge Mount: Saves desk space and provides a clean look.
• Easy Height Adjustment (100mm): Position your monitor for optimal comfort.
• Tilting Mechanism: Adjust the viewing angle for better ergonomics.
• Universal VESA Compatibility (75x75 & 100x100): Works with most monitors.
• Sturdy Die-Cast Construction: Ensures durability and stability.
• Easy Installation: No drilling required for edge mounting (requires drilling for grommet mount - not included in this model).
• Cable Management: Integrated cable clips keep your workspace organized.

Applications:

• Creating a more ergonomic workspace by positioning your monitor at an optimal height and angle.
• Freeing up desk space by mounting your monitor on the edge of your desk.
• Ideal for home offices, businesses, and gaming setups.

What's in the Pack:

• Ebco FSHSA Single Arm Edge Mount Monitor Arm
• Mounting hardware (screws, clips, etc.)

1. Drill Ø 12.5mm hole throughout on table top on the desired position.
2. Fix the vertical pole as shown in fig. 1.
3. Clip the height adjustment clip on to the one of the holes on the vertical pole and slide the diagonal arm on to the pole from top till the bottom face of the arm rests on the height adjustment clip as shown in Fig. 2.
4. Assemble the other parts as shown in Fig. 3.
5. For VESA 100mm model, screw the 100mm plate to the hanging bracket with M4 screws as shown in Fig. 4.
6. Screw the flat screen to the hanging bracket with M4 screws provided as shown in Fig. 5.
7. Insert the monitor cables in to the arm clip and wire holder, then clip them to the diagonal arm and vertical pole respectively, as shown in Fig. 6.
